AIO-S

S The Speaker Test Module (AIO-S) is designed for making advanced acoustic and impedance measurements of a device under test (DUT)—typically a speaker or driver. Ideal for use with measurement microphones, ear simulators, artificial heads, speakers, actuators, and mouth simulators. AIO-S is a configuration option for the AIO Test System and requires the AIO chassis to operate.

Hardware Features

  • Two mic/line inputs
  • CCP/IEPE/ICP microphone power
  • TEDS reader for microphone data
  • Two 10 W class-D amplifier outputs
  • Internal 0.1 Ω impedance sense resistor
  • Additional inputs for voltage and current monitoring

Key Applications

  • Speaker measurements with impedance
  • Drivers
h

Download the AIO-S Module Data Sheet (PDF)

Performance

Performance

The Echo AIO ™ is a modular audio test platform ideally suited for high-volume production-line testing and QA/QC verification. The AIO combines the functionality of multiple standalone devices into a single, integrated unit, making test stations both more reliable and less expensive.

MIC / LINE INPUTS

Two low-noise inputs accommodate a very wide range of input voltages, from dynamic microphones to line-level inputs. Features include adjustable gain, constant current power, and TEDS readers.

MIC / LINE INPUTS

Two low-noise inputs accommodate a very wide range of input voltages, from dynamic microphones to line-level inputs. Features include adjustable gain, constant current power, and TEDS readers.

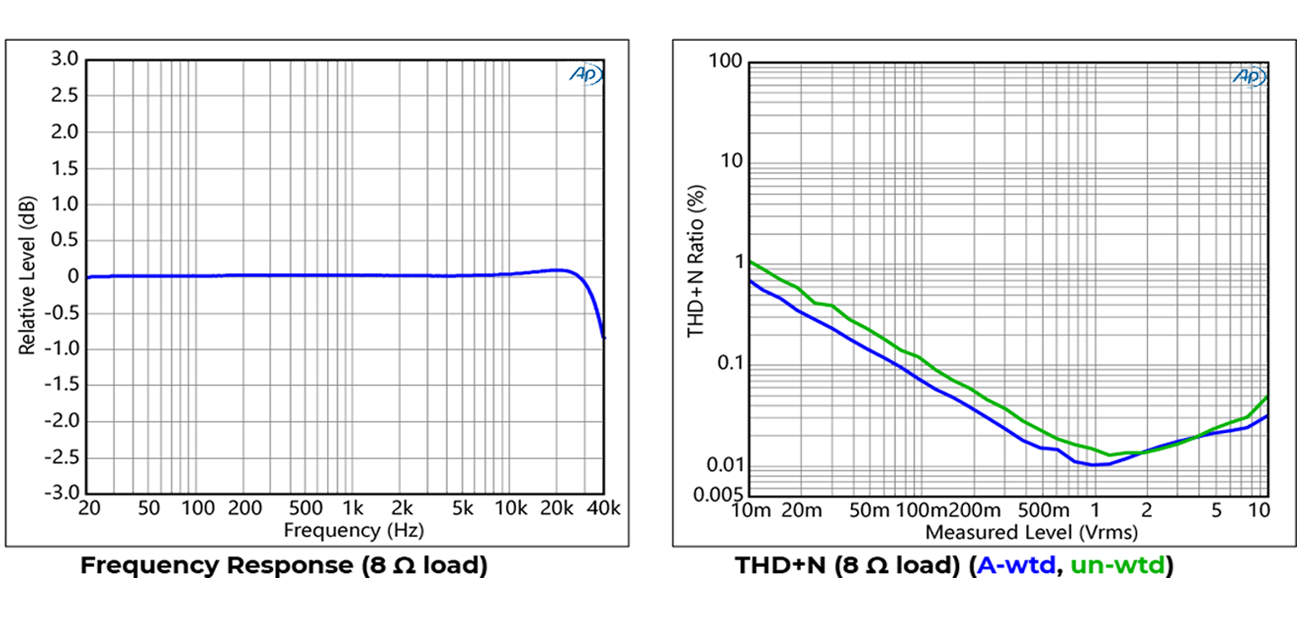

AMPLIFIER / SPEAKER OUTPUTS

Two high-quality 10 Watt class-D floating amplifier outputs, one with impedance measurement.

AMPLIFIER / SPEAKER OUTPUTS

TTwo high-quality 10 Watt class-D floating amplifier outputs, one with impedance measurement.

IMPEDANCE MEASUREMENT

Two additional inputs are used to measure load impedance via the remote voltage sense terminals and an internal 0.1 Ω sense resistor. These inputs appear as additional audio input channels.

IMPEDANCE MEASUREMENT

Two additional inputs are used to measure load impedance via the remote voltage sense terminals and an internal 0.1 Ω sense resistor. These inputs appear as additional audio input channels.

configurations

configurations

Inner Module Outer Module Mic/Line Inputs Line Outputs Headphone Outputs Amp Outputs Impedance Digital 5VDC Fixed Battery Simulator GPIO PTH
AIO-S1 AIO-S 2 2 1
AIO-S2 AIO-S AIO-S 4 4 2
AIO-SA AIO-S AIO-A 6 6 1
AIO-SL AIO-S AIO-L 6 2 2 1
AIO-SH AIO-S AIO-H 4 2 2 2
AIO-SC AIO-S AIO-C 2 2 1 Yes Yes 8/8 Yes
AIO-ST AIO-S AIO-t 2 2 1 TDM 10/10

specifications

specs

1 MΩ
AC
1x, 10x, and 100x selectable
8.75 Vpk (1x gain, +15.8dBV)
±15 Vpk (do not exceed)
±0.01 dB 10 Hz – 22 kHz  (48k SR)
±0.01 dB 10 Hz – 44 kHz  (96k SR)
±0.1 dB   10 Hz –  86 kHz  (192k SR)
94 kHz (-3dB @ 192k SR)
112 dB (20 kHz BW)
< -105 dB (1x gain, 20 Hz – 20 kHz, 20 kHz BW)
17uV
-95 dB (SMPTE 4:1 @ full scale)
<-122 dB (20 Hz – 20 kHz)
<0.05 ° @ 20 kHz
CCP/IEPE/ICP, 4 mA
IEEE 1451.4 Class 1
190 mΩ
AC
4 Ω
9.475 Vrms (8 Ω load)
< ±6 mV
10W @ < 0.2% THD+N (8 Ω load, 20 Hz – 20 kHz)
6W @ < 0.3% THD+N (4 Ω load, 20 Hz – 20 kHz)
±0.2 dB 10 Hz – 20 kHz ( 8 Ω load)
44 kHz (-3 dB @ 192k SR)
100 dB (20 kHz BW)
 100 μV
< -53 dB (0.5 mW, SMPTE 4:1)
<-70dB (20 Hz – 20 kHz), -95 dB @ 1 kHZ
< ±1.2° @ 20 kHz
17.5 Vpk
8.75 Apk
< -95 dB (20 Hz – 20 kHz)
±0.5 dB (20 Hz – 20 kHz)
44.1 kHz – 192 kHz
USB 2.0 audio class compliant
Windows 10 or later, macOS
ASIO, WASAPI, Core Audio
90 – 264 VAC, 50/60 Hz, 60 W
17.5” (44.4 cm) x 8.75” (22.2 cm) x 1.75” (4.4 cm), 7.2 lbs (3.3 kg)
21” (53 cm) x 10” (25.4 cm) x 5” (12.7 cm), 8.75 lbs (4 kg)
22” (55.8 cm) x 22” (55.8 cm) x 12.6” (32 cm), 42.5 lbs (19.3 kg)
