AIO-L
The Line-level Test Module (AIO-L) is designed for making basic acoustic or electrical measurements of a device under test (DUT). AIO-L is a configuration option for the AIO Test System and requires the AIO chassis to operate.Hardware Features
- Four mic/line inputs
- CCP/IEPE/ICP microphone power
- TEDS reader for microphone data
- Two balanced line-level outputs
Key Applications
- Mobile devices
- Communications systems

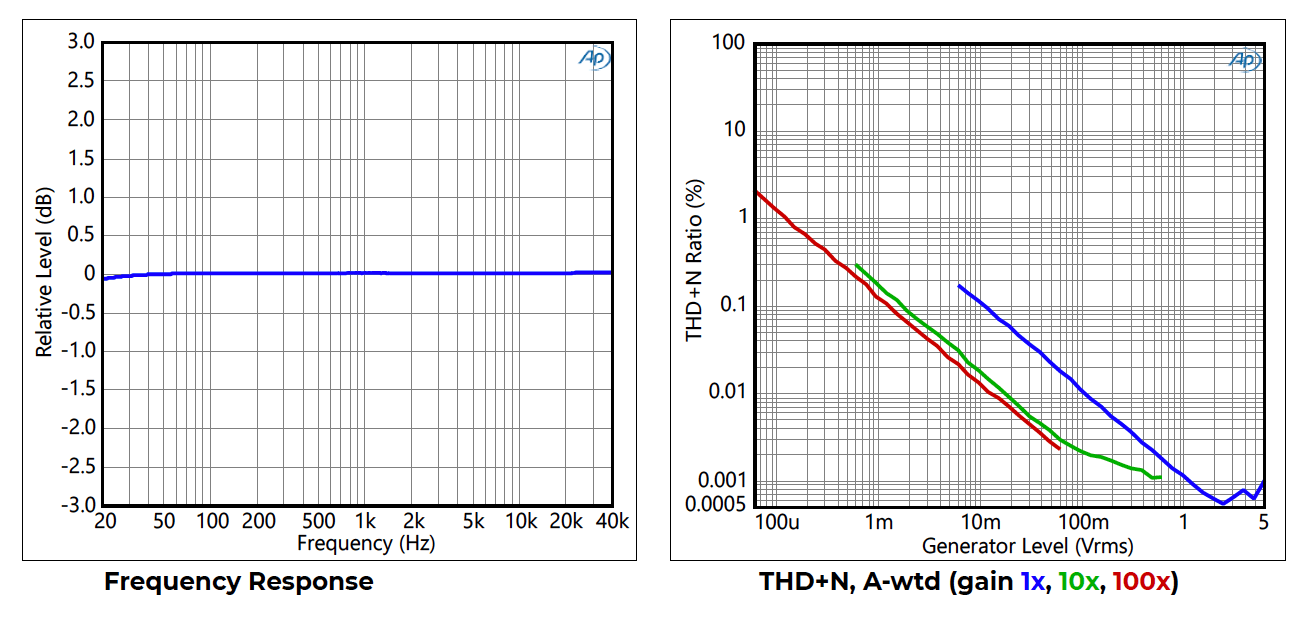

Performance
Performance
The Echo AIO ™ is a modular audio test platform ideally suited for high-volume production-line testing and QA/QC verification. The AIO combines the functionality of multiple standalone devices into a single, integrated unit, making test stations both more reliable and less expensive.
MIC / LINE INPUTS
Four low-noise inputs accommodate a very wide range of input voltages, from dynamic microphones to line-level inputs. Features include adjustable gain, constant current power, and TEDS readers.
MIC / LINE INPUTS
Four low-noise inputs accommodate a very wide range of input voltages, from dynamic microphones to line-level inputs. Features include adjustable gain, constant current power, and TEDS readers.
LINE - LEVEL OUTPUTS
Two high-quality low-noise, low-distortion balanced line-level outputs.
LINE - LEVEL OUTPUTS
Two high-quality low-noise, low-distortion balanced line-level outputs.
configurations
configurations
| Inner Module | Outer Module | Mic/Line Inputs | Line Outputs | Headphone Outputs | Amp Outputs | Impedance | Digital | 5VDC Fixed | Battery Simulator | GPIO | PTH | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AIO-L1 | AIO-L | 4 | 2 | |||||||||
| AIO-L2 | AIO-L | AIO-L | 8 | 4 | ||||||||
| AIO-LA | AIO-L | AIO-A | 8 | 2 | 2 | |||||||
| AIO-LH | AIO-L | AIO-H | 6 | 2 | 2 | 1 | ||||||
| AIO-LS | AIO-L | AIO-S | 6 | 2 | 2 | 1 | ||||||
| AIO-LC | AIO-L | AIO-C | 4 | 2 | Yes | Yes | 8/8 | Yes | ||||
| AIO-LT | AIO-L | AIO-T | 4 | 2 | TDM 10/10 |
specifications
specs
1 MΩ
AC
1x, 10x, and 100x selectable
8.75 Vpk (1x gain, +15.8dBV)
±15 Vpk (do not exceed)
±0.01 dB 10 Hz – 22 kHz (48k SR)
±0.01 dB 10 Hz – 44 kHz (96k SR)
±0.1 dB 10 Hz – 86 kHz (192k SR)
94 kHz (-3dB @ 192k SR)
112 dB (20 kHz BW)
< -105 dB (1x gain, 20 Hz – 20 kHz, 20 kHz BW)
17uV
-95 dB (SMPTE 4:1 @ full scale)
<-122 dB (20 Hz – 20 kHz)
<0.05 ° @ 20 kHz
CCP/IEPE/ICP, 4 mA
IEEE 1451.4 Class 1
102 Ω
DC
600 Ω
16 Vrms (+24 dBV) bal / 8 Vrms (+18 dBV) unbal
<±22.6 VDC (bal) / ±11.3 VDC (bal)
< ±1.6 mV
±0.01 dB 10 Hz – 21 kHz (48k SR)
±0.01 dB 10 Hz – 43 kHz (96k SR)
±1 dB 10 Hz – 75 kHz (192k SR)
90 kHz (-3 dB @ 192k SR)
120 dB
< -102 dB (20 Hz – 20 kHz, 20 kHz BW)
17 µV (bal), 8.5 µV (unbal)
-101 dB (SMPTE 4:1 at full scale)
< -122 dB (20 Hz – 20 kHz)
< 0.1° @ 20 kHz
44.1 kHz – 192 kHz
USB 2.0 audio class compliant
Windows 10 or later, macOS
ASIO, WASAPI, Core Audio
90 – 264 VAC, 50/60 Hz, 60 W
17.5” (44.4 cm) x 8.75” (22.2 cm) x 1.75” (4.4 cm), 7.2 lbs (3.3 kg)
21” (53 cm) x 10” (25.4 cm) x 5” (12.7 cm), 8.75 lbs (4 kg)
22” (55.8 cm) x 22” (55.8 cm) x 12.6” (32 cm), 42.5 lbs (19.3 kg)
