AIO
Test System

The Echo AIO ™ Test System is a modular audio test platform ideally suited for high-volume continuous mass production. The AIO combines the functionality of multiple standalone devices into a single, integrated unit, making test stations both more reliable and less expensive.

The AIO comes in a variety of configurations with flexible analog and digital I/O options.

The AIO is USB 2.0 audio class compliant, so it works just like a sound card. Standard audio drivers provide seamless support with industry-leading audio test software.

The design of the AIO draws on our decades of experience creating high-quality consumer and professional audio interfaces. Since its introduction in 2014, the AIO has been used to test hundreds of millions of products. The AIO is a proven, field-tested, cost-effective, and accurate audio test solution.

Applications

  • Speakers & headphones
  • Mobile devices
  • Car audio
  • Microphones
  • Analog and digital audio
  • And more…

Features

  • High accuracy
  • Cost effective
  • Silent—no fan!
  • Standard USB audio interface
  • Wide test & measurement software compatibility
  • ASIO, WASAPI, & Core Audio protocols.
h

Download the AIO Test System Data Sheet (PDF)

modules

modules

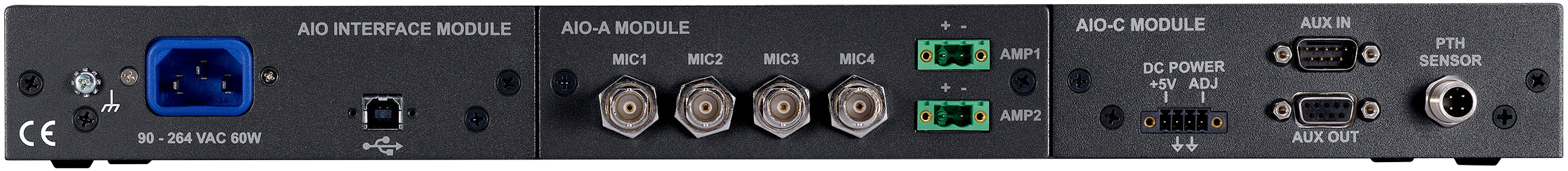

The AIO Test System is a modular design consisting of an AIO Chassis, an AIO Interface Module, and one or two test modules. Individual modules not sold separately.

AIO-A

Acoustic: Four mic/line inputs wit CCP, TEDS; two 10 W class-D amplifier outputs.

view AIO-A details

AIO-C

Combo: GPIO; 5 VDC fixed supply;
5 VDC battery simulator; Pressure,
temperature, and humidity sensor.

view AIO-C details

AIO-H

Headphone: Two mic/line inputs with CCP, TEDS; two headphone/earbud outputs with impedance measurement.

view AIO-H details

AIO-L

Line-level: Four mic/line inputs with CCP, TEDS; two balanced line-level outputs.

view AIO-L details

AIO-S

Speaker: Two mic/line inputs with CCP, TEDS; two 10 W class-D amplifier outputs; built-in speaker impedance measurement.

view AIO-S details

AIO-T

TDM: Digital TDM, up to 10 channels, 24 or 32 bit samples, 192 kHz.

view AIO-T details

common configurations

common configurations

Inner Module Outer Module Mic/Line Inputs Line Outputs Headphone Outputs Amp Outputs Impedance Digital 5VDC Fixed Battery Simulator GPIO PTH
AIO-A1 AIO-A 4 2
AIO-A2 AIO-A AIO-A 8 4
AIO-AC AIO-A AIO-C 4 2 Yes Yes 8/8 Yes
AIO-AH AIO-A AIO-H 6 2 1
AIO-AT AIO-A AIO-T 4 2 TDM 10/10
AIO-C1 Yes Yes 8/8 Yes
AIO-H1 AIO-H 2 2 1
AIO-H2 AIO-H AIO-H 4 4 2
AIO-L1 AIO-L 4 2
AIO-L2 AIO-L AIO-L 8 4
AIO-LT AIO-L AIO-T 4 2 TDM 10/10
AIO-S1 AIO-S 2 2 1
AIO-S2 AIO-S AIO-S 4 4 2
AIO-SA AIO-S AIO-A 6 3 1
AIO-SL AIO-S AIO-L 6 2 2 1
AIO-ST AIO-S AIO-t 2 2 1 TDM 10/10
AIO-T1 AIO-T TDM 10/10

specifications

specs

1 MΩ
AC
1x, 10x, and 100x selectable
8.75 Vpk (1x gain, +15.8dBV)
±15 Vpk (do not exceed)
±0.01 dB 10 Hz – 22 kHz  (48k SR)
±0.01 dB 10 Hz – 44 kHz  (96k SR)
±0.1 dB   10 Hz –  86 kHz  (192k SR)
94 kHz (-3dB @ 192k SR)
112 dB (20 kHz BW)
< -105 dB (1x gain, 20 Hz – 20 kHz, 20 kHz BW)
17uV
-95 dB (SMPTE 4:1 @ full scale)
<-122 dB (20 Hz – 20 kHz)
<0.05 ° @ 20 kHz
CCP/IEPE/ICP, 4 mA
IEEE 1451.4 Class 1
102 Ω
DC
600 Ω
16 Vrms (+24 dBV) bal / 8 Vrms (+18 dBV) unbal
<±22.6 VDC (bal) / ±11.3 VDC (bal)
< ±1.6 mV
±0.01 dB 10 Hz – 21 kHz (48k SR)
±0.01 dB 10 Hz – 43 kHz (96k SR)
±1 dB 10 Hz – 75 kHz (192k SR)
90 kHz (-3 dB @ 192k SR)
120 dB
< -102 dB (20 Hz – 20 kHz, 20 kHz BW)
17 µV (bal), 8.5 µV (unbal)
-101 dB (SMPTE 4:1 at full scale)
< -122 dB (20 Hz – 20 kHz)
< 0.1° @ 20 kHz
190 mΩ
AC
4 Ω
9.475 Vrms (8 Ω load)
< ±6 mV
10W @ < 0.2% THD+N (8 Ω load, 20 Hz – 20 kHz)
6W @ < 0.3% THD+N (4 Ω load, 20 Hz – 20 kHz)
±0.2 dB 10 Hz – 20 kHz ( 8 Ω load)
44 kHz (-3 dB @ 192k SR)
100 dB (20 kHz BW)
 100 μV
< -53 dB (0.5 mW, SMPTE 4:1)
<-70dB (20 Hz – 20 kHz), -95 dB @ 1 kHZ
< ±1.2° @ 20 kHz
350 mΩ
DC
16 Ω
3 Vrms (+9.5 dBV)
125 mA/channel
±4.24 VDC (32 Ω load or higher), ±2.8 VDC (16 Ω load)
< ±1.5 mV
(32 Ω) 281 mW @ < 0.0016% THD+N (20 Hz – 20 kHz)
(16 Ω) 250 mW @ < 0.0019% THD+N (20 Hz – 20 kHz)
±0.01 dB 10 Hz – 21 kHz (48k SR)
±0.01 dB 10 Hz – 43 kHz (96k SR)
±1 dB 10 Hz – 75 kHz (192k SR)
89 kHz (-3 dB @ 192k SR)
120 dB (20 kHz BW)
2.8 μV
< -82 dB (> 375 µW)
< -119 dB (20 Hz – 20 kHz)
< ±0.1° @ 20 kHz
< 1% (20 Hz – 20 kHz)
17.5 Vpk
8.75 Apk
< -95 dB (20 Hz – 20 kHz)
±0.5 dB (20 Hz – 20 kHz)
> 2, 4, 8, or 10
Internal or external
64, 128, or 256
24 or 32
1 – 128 bits
> Bit 0 – 255
8/8
260 to 1260 hPa absolute
-40 °C – 90 °C ±0.2°
±1.5 % relative humidity
44.1 kHz – 192 kHz
USB 2.0 audio class compliant
Windows 10 or later, macOS
ASIO, WASAPI, Core Audio
90 – 264 VAC, 50/60 Hz, 60 W
17.5” (44.4 cm) x 8.75” (22.2 cm) x 1.75” (4.4 cm), 7.2 lbs (3.3 kg)
21” (53 cm) x 10” (25.4 cm) x 5” (12.7 cm), 8.75 lbs (4 kg)
22” (55.8 cm) x 22” (55.8 cm) x 12.6” (32 cm), 42.5 lbs (19.3 kg)
5 VDC, 1 A max
1 mVDC – 5 VDC, 1 A max, with
current measurement
